Air compressor motors are the powerhouse behind pneumatic systems, converting electrical energy into mechanical force to drive air compression. Whether for industrial manufacturing, automotive workshops, or home garages, understanding the different types, performance factors, and applications of air compressor motors is crucial for maximizing efficiency and reliability. This guide explores everything you need to know about air compressor motors, helping you choose the right motor for your specific needs.
What Are Air Compressor Motors?
Air compressor motors are electric motors specifically designed to drive the pump mechanisms in air compressors. These motors supply the rotational energy that powers pistons or rotary elements to compress air into a storage tank or deliver it directly through a hose. The motor’s specifications determine the compressor’s capabilities, including pressure output, flow rate, and operational efficiency.
Types of Air Compressor Motors
There are several types of air compressor motors, each with distinct characteristics suited for different use cases.
1. Single-Phase Motors
These motors are common in residential and light commercial settings. Operating on standard 110V or 220V power, single-phase motors are typically used for small to medium-sized compressors.
Pros:
- Easy to install
- Affordable
- Compatible with standard home electrical systems
Cons:
- Limited power output
- Not suitable for continuous heavy-duty use
2. Three-Phase Motors
Three-phase motors are used in industrial settings where higher power and efficiency are needed. They run on 208V, 230V, or 460V three-phase power and are ideal for large, continuous-use air compressors.
Pros:
- High efficiency
- Greater torque
- Suitable for heavy-duty applications
Cons:
- Requires a three-phase power supply
- More complex installation
3. Brushless DC Motors (BLDC)
BLDC motors are used in modern, energy-efficient portable compressors. These motors offer precise speed control and high torque in a compact form.
Pros:
- High efficiency
- Long lifespan
- Low maintenance
Cons:
- Higher initial cost
- Requires an electronic controller

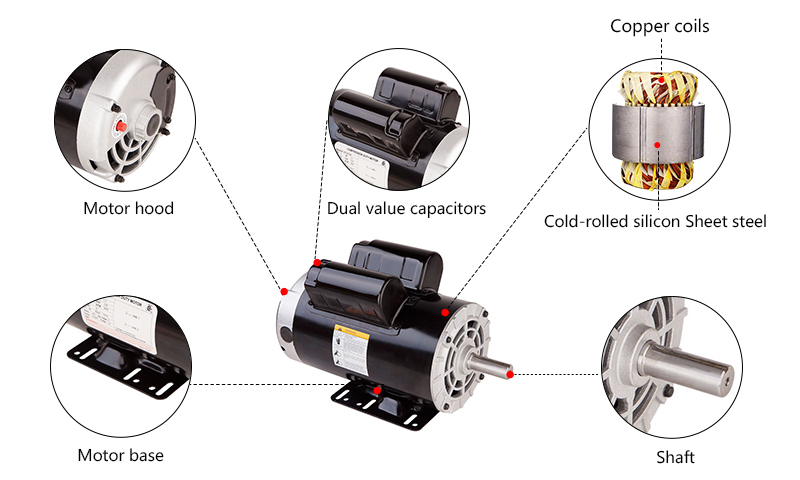

4. Capacitor-Start Motors
Capacitor-start motors provide a high starting torque, making them suitable for air compressors that require significant power during startup.
Pros:
- Powerful startup
- Reliable operation
Cons:
- Not energy-efficient during prolonged use
5. Split-Phase Motors
These are economical motors used for small air compressors. They are simple in construction and provide moderate starting torque.
Pros:
- Affordable
- Low maintenance
Cons:
- Limited performance range
Key Performance Factors of Air Compressor Motors
When selecting an air compressor motor, consider these performance factors:
1. Horsepower (HP)
Motor horsepower determines the amount of work the motor can perform. For general use, 1 HP to 5 HP motors are common. Higher HP motors are used for industrial-grade compressors.
2. RPM (Revolutions Per Minute)
The RPM rating affects how fast the motor turns the compressor pump. Lower RPMs usually mean quieter operation and less wear, while higher RPMs offer quicker compression.
3. Voltage and Amperage
Ensure the motor’s voltage and amperage match your electrical supply. Undersized wiring or mismatched voltage can damage the motor or cause inefficient performance.
4. Duty Cycle
The duty cycle indicates how long a motor can operate before it needs to rest. A 100% duty cycle means continuous use, ideal for industrial operations. Lower duty cycles are better for intermittent use.
5. Efficiency Rating
High-efficiency motors consume less electricity, lowering energy costs. Look for motors with Energy Star or NEMA Premium ratings.
Applications of Air Compressor Motors
Air compressor motors are used across various sectors. Here are some common applications:
1. Automotive Industry
Air compressor motors power tools like impact wrenches, spray guns, and pneumatic jacks in auto repair shops. They are essential for tire inflation and paint jobs.
2. Manufacturing and Fabrication
Compressed air is used to operate CNC machines, presses, and other automated equipment. Motors must provide high reliability and durability.
3. Construction
In construction, air compressors run tools such as jackhammers, nail guns, and sandblasters. Portable, high-torque motors are preferred.
4. HVAC Systems
Air compressors are used in cooling systems for pressurization and testing. Motors in this field must meet specific performance standards.
5. Agriculture
From powering milking machines to crop sprayers, air compressors with durable motors improve efficiency and reduce manual labor on farms.
6. Home and DIY Use
Smaller air compressors with single-phase motors are great for inflating tires, cleaning, painting, and light-duty air tools in home workshops.
How to Choose the Right Air Compressor Motor
Choosing the right air compressor motor involves matching the application requirements with motor specifications. Here’s what to consider:
- Compressor Size and Load: Larger compressors require more powerful motors.
- Usage Frequency: Continuous use demands a motor with a higher duty cycle.
- Power Availability: Match motor voltage and phase with your electrical system.
- Environmental Conditions: Motors in dusty, hot, or wet environments need special enclosures.
- Noise Restrictions: Opt for lower RPM motors or brushless types for quieter operation.
Maintenance Tips for Air Compressor Motors
Proper maintenance ensures longevity and optimal performance:
- Regular Inspection: Check for wear, overheating, or unusual noise.
- Lubrication: Keep bearings and moving parts well-lubricated.
- Clean the Motor Housing: Dust and debris can cause overheating.
- Check Electrical Connections: Loose wires can cause voltage drops and motor damage.
- Replace Worn Components: Brushes, capacitors, or bearings should be replaced when worn.
Troubleshooting Common Issues
Here are common air compressor motor problems and their solutions:
- Motor Won’t Start: Check power supply, fuse, and switch connections.
- Overheating: Clean cooling fins, ensure ventilation, and check voltage levels.
- Unusual Noise: Inspect bearings or look for loose mounting bolts.
- Tripping Breaker: May indicate an overload or faulty capacitor.
Latest Innovations in Air Compressor Motors
Advancements in technology have improved air compressor motors significantly:
- Variable Speed Motors (VSD): Adjust motor speed based on demand, reducing energy use.
- Smart Motors: Integrated with IoT systems for remote monitoring and diagnostics.
- Permanent Magnet Motors: Offer higher efficiency and compact size.
These innovations are especially beneficial in industries focusing on sustainability and automation.
Conclusion
Understanding the types, performance features, and applications of air compressor motors can greatly impact the productivity and efficiency of your operations. Whether you’re running a small workshop or a large-scale manufacturing plant, choosing the right motor ensures reliable performance, reduced downtime, and energy efficiency.
By evaluating your specific requirements and staying updated on the latest motor technologies, you can make an informed decision that supports both your operational goals and long-term cost savings. Investing in the right air compressor motor is not just a technical choice—it’s a strategic one for future-proofing your business.
