Picture this: your GM car’s tire pressure warning light stays on after inflating the tires, or the ABS light flickers during braking. Regular OBD2 scanners might show generic codes like “P0500” (wheel speed sensor) but fail to pinpoint whether the issue lies in a TPMS sensor, wiring, or the ABS module. This ambiguity leaves GM owners guessing—until they realize standard tools can’t crack the brand’s unique diagnostic protocols.
What Makes GM TPMS & ABS Diagnostics Unique
1. Dual Control Modules: ECU vs. BCM
GM vehicles separate diagnostic tasks between two brain centers:
– ECU (Engine Control Unit): Manages engine performance and traditional OBD2 codes.
– BCM (Body Control Module): Oversees TPMS, ABS, and vehicle electronics.
Why this matters: A TPMS fault in the BCM might show up as an ECU-related code on generic scanners, leading to misdiagnosis. For example, a dead TPMS sensor could be mistaken for an engine issue, wasting time and money on unnecessary repairs.
2. Software Auto-Location (SAL): GM’s Smart Sensor Tracking
GM’s SAL technology uses ABS wheel speed data to automatically map TPMS sensor positions during tire rotations. But here’s the catch: *standard scanners can’t communicate with SAL, meaning they can’t reset sensor locations after a tire change. This leads to persistent warning lights—even if sensors are functional.
Why TPMS Sensor Relearn Matters in GM Cars
When you rotate tires or replace TPMS sensors, the system needs to “relearn” sensor IDs. Fail to do this, and:
– Warning lights stay on, masking real issues.
– You might replace healthy sensors unnecessarily.
Real-world example: A Chevy Silverado owner spent $300 replacing all four TPMS sensors, only to find the problem was a missed relearn after a tire rotation. A $50 TPMS scan tool could have saved the expense.
Limits of Standard OBD2 Scanners
1. Incomplete Code Access
– Generic scanners often miss GM-specific TPMS codes (e.g., “B1570” for a dead sensor).
– ABS faults like hydraulic system leaks might not appear until after 5+ drive cycles, delaying repairs.
2. No Support for GM’s Proprietary Tests
– Can’t activate SAL to map sensor locations.
– Can’t perform ABS pump tests, forcing guesswork on hydraulic issues.
Why You Need a TPMS Scan Tool for GM Cars
Reads TPMS Error Codes
To fix GM TPMS problems, you need a tool that reads error codes. Without it, finding issues like warning lights or bad sensors is hard. A TPMS scanner makes this easier by directly reading system errors.
Many GM drivers have shared how these tools helped them:
- One driver saved $20–$30 per tire change by resetting the system after switching tires.
- Another person found both a transmission and tire sensor issue in one session using a TPMS tool.
These stories show how a TPMS tool saves time and money while keeping your car safe.

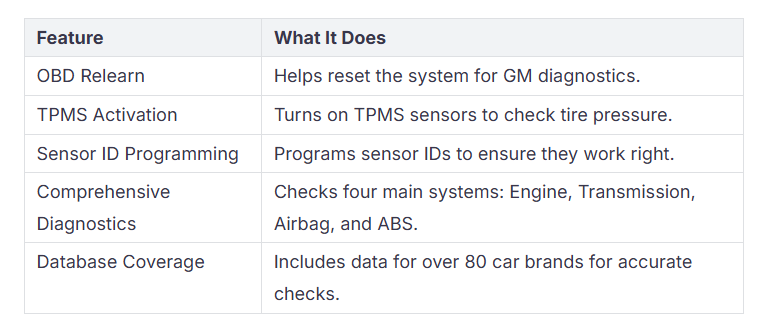

Supports OBD Relearn, TPMS Activation, and Sensor Programming
A TPMS scan tool has key features like OBD relearn, TPMS activation, and sensor ID programming. These are important for keeping sensors working and tracking tire pressure correctly.
Reads ABS Error Codes Too, Saving Money on Tools
A TPMS tool also reads ABS error codes, so you don’t need extra tools. This saves money and helps find ABS problems like bad wheel sensors or hydraulic issues. Fixing ABS problems quickly keeps your car safe.
By combining TPMS and ABS checks, you save time and avoid extra costs. Whether fixing GM TPMS or ABS issues, a dual-use scanner makes the job easier and safer
Foxwell Tools: Tailored for GM Owners( NT809TS, and T2000 Pro)
When it comes to GM TPMS and ABS diagnostics, Foxwell offers professional solutions. Here’s their tool lineup:
Full-Function TPMS Solutions (Universal Vehicle Coverage)
– NT809TS: A universal full-function diagnostic tool, the NT809TS features sensor activation, OBD relearn, and sensor ID programming, along with 31+ special functions (e.g., ABS bleeding, oil reset)—all easily operated through an intuitive touchscreen interface.
– T2000 Pro: Designed for professional use, the T2000 Pro specializes in sensor activation, programming, and resetting. It can diagnose GM-specific TPMS codes (e.g., B1570 sensor signal loss, U1000 CAN bus conflict), ideal for repair shops handling high-volume GM TPMS repairs.
Notice:
The TPMS programming function of NT809TS and T2000 Pro is only compatible with Foxwell-branded sensors. Due to protocol barriers, programming of original OEM sensors (e.g., GM-manufactured) is not supported. This limitation is common across global TPMS tools.
These two scanners fit different budgets and needs, so every GM owner can find the right one for their car. Explore the best TPMS tools to buy in 2025.
Advantages for GM Vehicle Diagnostics
Using these scanners gives you many benefits beyond basic checks. They help you take better care of your GM car while saving time and money.
- Find problems early: These tools catch issues before they get worse, saving on repairs.
- Better fuel efficiency: Fixing TPMS and ABS helps your car use less gas.
- Lower emissions: Proper diagnostics keep your car eco-friendly by reducing pollution.
- Easy to use: The simple design makes these scanners great for beginners.
- Protects your engine: Early fixes prevent damage to important parts.
- Boosts performance: Regular checks keep your car running smoothly.
- Saves money: Fixing small issues early avoids expensive repairs later.
- Detailed reports: These tools give clear info about your car’s condition.
- With these benefits, buying a good OBD2 scanner is a smart move for GM owners.
Step-by-Step Guide to Diagnosing GM TPMS and ABS Issues
Step-by-Step: Diagnosing GM TPMS & ABS Issues
1. Prep Your Car & Tool
- Park on a flat surface, engage parking brake, and cool the engine.
- Inflate tires to the exact PSI on your driver’s door placard (wrong pressure triggers false TPMS warnings).
- Charge your Foxwell scanner (wired models: plug into OBD2 port under the dash).
2. Scan for Codes & Act
- Connect the scanner, turn ignition to “ON” (don’t start the engine).
- Select “GM” > model > year. For TPMS:
- If code “B1450” appears, check the left rear sensor battery.
- For ABS code “C0200”, inspect the front right wheel speed sensor wiring.
- After fixing the issue, use the scanner’s “TPMS Relearn” function: drive at 15–20 mph for 5 minutes to complete SAL mapping.
Final Tip
Avoid using flat tire sealants—they corrode TPMS sensors. And when replacing valve stems, choose GM-certified parts to prevent leaks that confuse the system. With the right scan tool, GM TPMS and ABS problems transform from frustrating mysteries into straightforward fixes.
